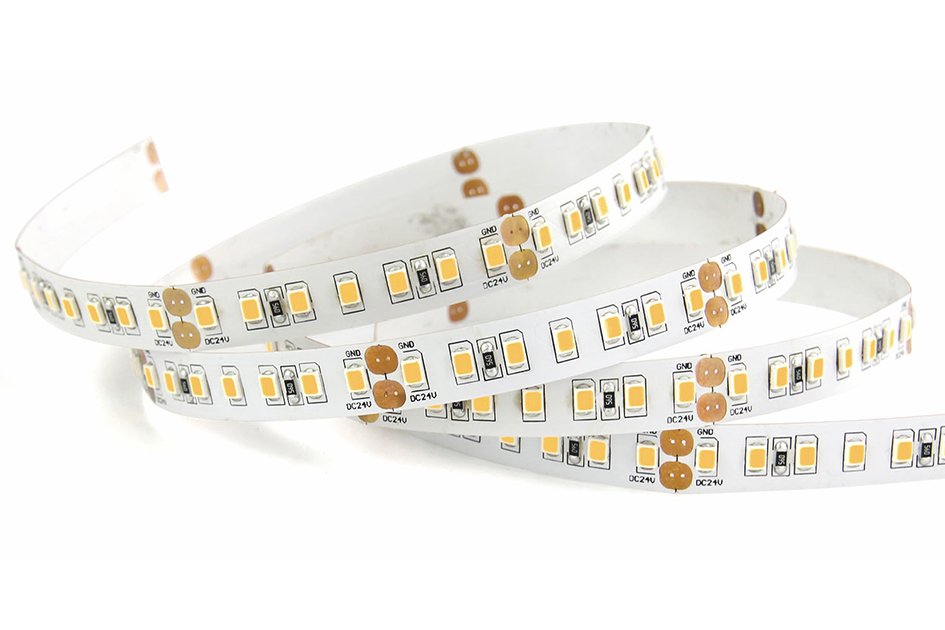

Product :2835-182-10mm-5m

Feature / Warranty

◆ We selected DC2.8-2.9V, 27-29LM, SMD2835 chips and adopted DC24V and 8 leds/group
solution to design 150LM/W Led Strips.
◆ Sometimes customer want high brightness but compliant heat dissipation problem,
150LM/W led strips could be a better choice.
◆ Adopt 1:2 OZ RA Copper PCB to reduce the voltage drop.
◆ We found that SMD2835 chips could get highest light efficiency when the drive current is 30ma.

IP rate


Electrical & Output Data
Light efficiency & Lumen Output

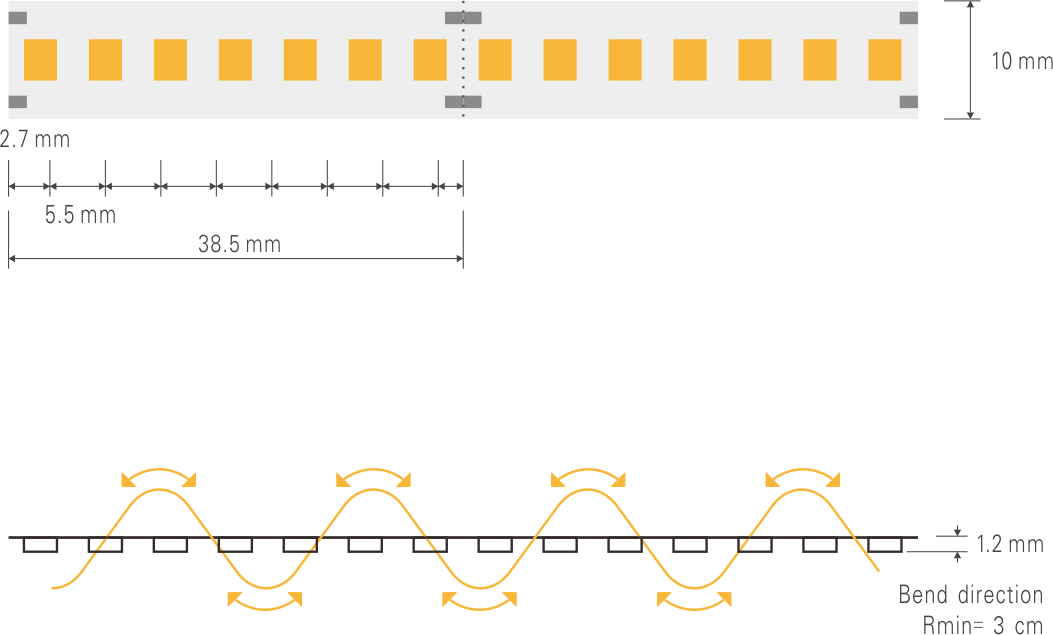

Dimensions & available lengths

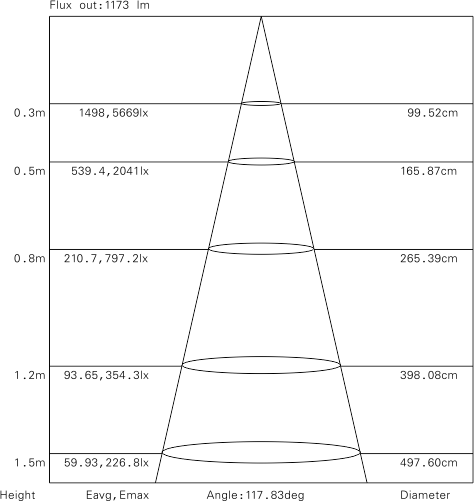

Illuminance Distribution
